Nissan Almera/Tino 2000-2007 Wiring Diagrams
On this page, all wiring diagrams for Almera/Tino cars are collected. Here you will find the engine wiring diagram, ECU, Earth locations. Wiring from all headlights,
Power windows and rear-view mirrors. Wiring diagram for glass and mirror heating.
Location and wiring to all sensors in the engine compartment.
Diagram 1 Information for wiring diagrams.Earth locations.
Diagram 2 Power supply distribution. Ignition switch. Primary circuit relays.
Diagram 3 Starting and charging systems.Radiator fan. Horn.
Diagram 4 Headlights and daytime driving lights.
Diagram 5 Side lights. Numberplate light.Headlight levelling. Brake lights. Reversing lights.
Diagram 6 Front and Rear fog lights. Direction indicators
Diagram 7 Windscreen wipers & front/rear washer.Rear windscreen wiper. Headlight washer
Diagram 8 Central locking.
Diagram 9 Powered window lifts. Electric door mirrors. Powered sun roof.

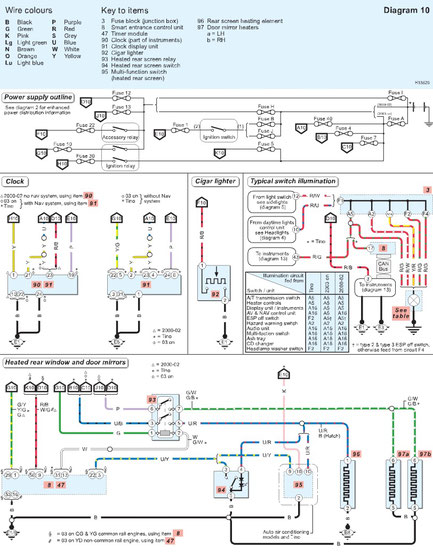

Diagram 10 Clock. Cigar lighter. Switch illumination.Heated rear window and door mirrors.
Diagram 11 Interior lighting. Seat heaters.
Diagram 12 Audio unit.

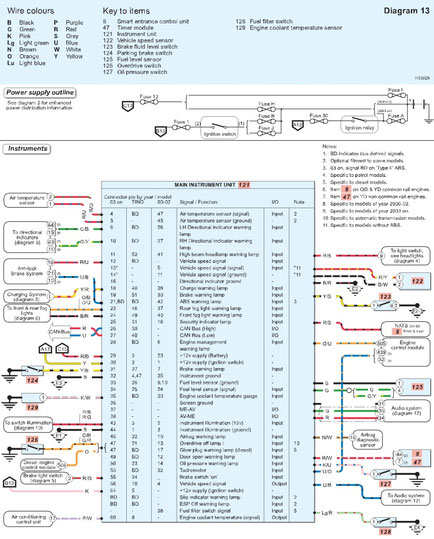

Diagram 13 Instruments
Diagram 14 Passenger compartment fuse box. Engine compartment Fuseblock
