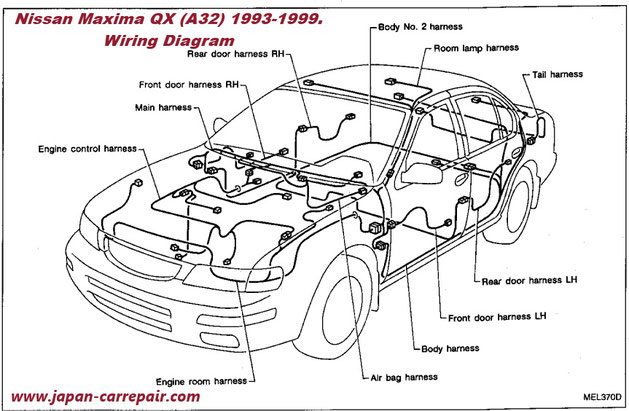

Nissan Maxima 1993-1999 Wiring Diagrams

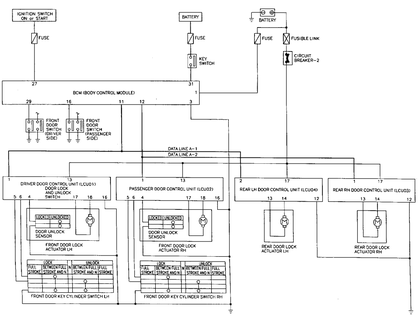

For all car dealerships, as well as all car enthusiasts, schematic diagrams of electrical equipment for the Nissan Maxima QX (A32) 1993-1999. J30  Schematic Diagram The steel body of Maxima cars has a universal design. The body rigidity of models since 2000, increased by 30%, further increases the level of passive safety. This type of body has larger dimensions.

A vacuum brake booster is included as standard on all models. Beginning in 1997, anti-lock brake system (ABS) was included as standard on the vehicle.

On models since 2000, the diameters of the front and rear brake cylinders have been increased - by 2.3 mm and 4.2 mm, respectively. When braking in an emergency, ABS is immediately activated by Nissan Brake Assist, a robust mechanical system designed to increase pedal pressure.

These two systems are complemented by electronic brake force distribution, which distributes the maximum pressure in the brake cylinders on each axle in accordance with the load, which significantly increases the safety of emergency braking.

• Crankshaft position sensor
• Throttle position sensor
• L-probe Oxygen sensor
• Switch valve
• Engine Control Module Wiring
• Air conditioner relay
• Database Read Diagnostic Connector
• Coolant temperature sensor engine

• Maxima QX (A32) Workshop Manual>>
• Home Page>>
