Mazda CX-9 TB 2006-2015 Workshop Service Manual
Mazda CX-9 TB 2006–2015 Service & Repair Manual – a detailed guide to repair, maintenance and diagnostics of the first-generation full-size crossover. Includes electrical equipment diagrams, information on the MZI 3.7 V6 engine, transmission, suspension, all-wheel drive system and other components. Ideal for owners and service station specialists, providing a complete guide to troubleshooting and scheduled maintenance.
Platform: Ford CD3 (shared with Ford Edge)
Engines:
3.5 L V6 (Ford Duratec) – 263 hp (2006–2007)
3.7 L V6 (MZI, Ford Cyclone) – 273–277 hp (2008–2015)
Transmission: 6-speed automatic Aisin
Drive: Front (FWD) or all-wheel drive (AWD)
| Mazda CX-9 TB 2006-2015 AirBag Diagnostic | Download |
| Mazda CX-9 TB 2006-2015 All Wheel Drive | Download |
| Mazda CX-9 TB 2006-2015 Transmission | Download |
| Mazda CX-9 TB 2006-2015 Body Panels | Download |
| Mazda CX-9 TB 2006-2015 Brake | Download |
| Mazda CX-9 TB 2006-2015 Cabin Air Filter | Download |
| Mazda CX-9 TB 2006-2015 Charging | Download |
| Mazda CX-9 TB 2006-2015 Cooling MZI 3.7 | Download |
| Mazda CX-9 TB 2006-2015 Cruise Control | Download |
| Mazda CX-9 TB 2006-2015 Differential | Download |
| Mazda CX-9 TB 2006-2015 Doors and Liftgate | Download |
| Mazda CX-9 TB 2006-2015 Drive Shafts, Tech Data, Stab. Control | Download |

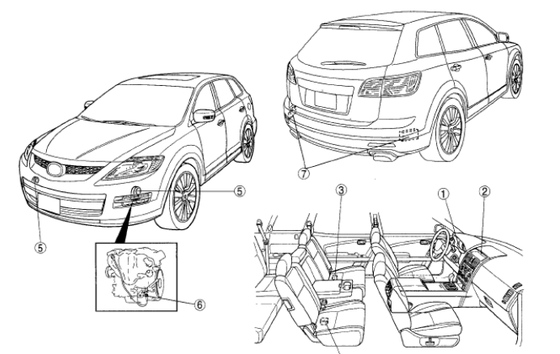

| Mazda CX-9 TB 2006-2015 Electrical Component Locations | Download |
| Mazda CX-9 TB 2006-2015 Emission MZI 3.7 | Download |
| Mazda CX-9 TB 2006-2015 Lighting System (EWD) | Download |
| Mazda CX-9 TB 2006-2015 Locks and Security | Download |
| Mazda CX-9 TB 2006-2015 Lubrication MZI 3.7 | Download |
| Mazda CX-9 TB 2006-2015 Navigation | Download |
| Mazda CX-9 TB 2006-2015 Parking Brake System | Download |
| Mazda CX-9 TB 2006-2015 Power Liftgate Diagnostic | Download |
| Mazda CX-9 TB 2006-2015 Power Steering | Download |
| Mazda CX-9 TB 2006-2015 Power Systems | Download |
| Mazda CX-9 TB 2006-2015 Propeller Shaft | Download |
| Mazda CX-9 TB 2006-2015 Rear Axle Rear Suspension | Download |
| Mazda CX-9 TB 2006-2015 Seats, Seat Belt | Download |
| Mazda CX-9 TB 2006-2015 Starting | Download |
| Mazda CX-9 TB 2006-2015 Sunroof | Download |
| Mazda CX-9 TB 2006-2015 Suspension Tech Data | Download |
| Mazda CX-9 TB 2006-2015 Tire Pressure Monitor Diagnostic | Download |
| Mazda CX-9 TB 2006-2015 Transfer Case | Download |
| Mazda CX-9 TB 2006-2015 Wheels Tires | Download |
| Mazda CX-9 TB 2006-2015 Window Troubleshooting | Download |
| Mazda CX-9 TB 2006-2015 Windows Mirrors | Download |
| Mazda CX-9 TB 2006-2015 Wiper Washer | Download |
| Mazda CX-9 TB 2006-2015 System Wiring Diagrams | Download |
Mazda CX-9 TB (2006–2015): Common Problems and Malfunctions
- 1. Engine (MZI 3.7 V6)
🔹 Increased oil consumption
Cause: worn piston rings, clogged ventilation valve.
Solution: check oil level, clean crankcase ventilation system.
🔹 Coolant leaks
Problem: water pump leak.
Symptoms: overheating, low antifreeze level.
Solution: replace pump every 80-100 thousand km.
🔹 Throttle contamination
Symptoms: floating speed, poor response to gas.
Solution: clean throttle every 40-50 thousand km.
🔹 Catalytic converter overheating
Symptoms: loss of power, error P0420.
Solution: replace catalytic converter or install flame arrester.
- 2. Transmission (6-speed automatic transmission Aisin TF-81SC)
🔹 Automatic transmission overheating
Cause: weak heat exchanger.
Solution: install an additional cooling radiator.
🔹 Shocks when shifting gears
Cause: solenoids are worn out, old oil.
Solution: change the oil every 50-60 thousand km, diagnose the solenoids.
- 3. Suspension and steering
🔹 Rapid wear of the stabilizer bushings
Symptoms: knocking when driving over uneven surfaces.
Solution: replace the bushings every 40-50 thousand km.
🔹 Steering rack problems
Symptoms: knocking, power steering fluid leak.
Solution: replace the seals or the entire rack.
- 4. Electrics
🔹 ABS unit failure
Symptoms: ABS error light, unstable system operation.
Solution: replace or repair the unit.
🔹 Ignition problems
Symptoms: engine misfires, cylinder errors.
Cause: ignition coil failure.
Solution: replace coils and spark plugs every 60–80 thousand km.
- 5. Body and interior
🔹 Corrosion of rear arches and sills
Solution: additional anti-corrosion treatment.
🔹 Weak paintwork
Symptoms: chips on the hood, fenders.
Solution: protection with film or ceramic coating
