Nissan/Renault K9K Engine Service Manual

K9K engine repair manual. This is a manual on the engine mechanics of this Nissan model. Contains instructions and data on repair procedures. Includes exploded views of engine components, engine block, and cylinder head.

The Nissan K9K engine is a 1461cc engine that uses a timing belt and has 2 valves for each of the 4 cylinders. The firing order of this engine is 1-3-4-2. This engine uses high pressure direct injection diesel fuel. It is used in Nissan Amera, Cube and others such as Dacia Duster, Dacia Sandero, Renault Megane Renault Clio.

• Vehicle Nissan Almera, Nissan Cube, Dacia Duster, Dacia Sandero, Renault Megane Renault Clio. Micra
• Engine type L4
• Fuel Diesel
• Engine code K9K

• K9K Engine Sensors Location>>
• Home Page>>
• K9K Engine Change Fuel Filter>>
• Nissan Micra K12 2003-2010 Full Factory Service Manual>>

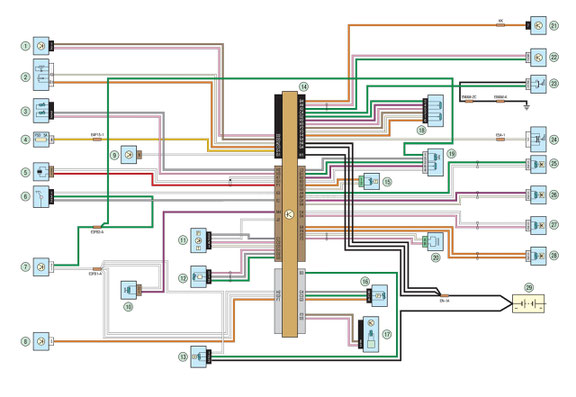

**K9K Engine Management System**: 1 - steering wheel stalk switches; 2 - speed limiter switch; 3 - coolant temperature sensor; 4, 7, 8, 9, 22 - engine compartment interface unit; 5 - detonation sensor; 6 - camshaft position sensor; 10 - metered fuel supply pump; 11 - atmospheric pressure/air temperature sensor; 12 - fuel rail pressure sensor; 13 - water in diesel fuel sensor; 14 - engine control unit; 15 - fuel temperature sensor; 16 - refrigerant pressure sensor; 17 - pre/post-heating unit; 18 - throttle position sensor; 19 - EGR solenoid valve; 20 - crankshaft position sensor; 21 - diagnostic socket; 23 - clutch pedal switch; 24 - brake light switch; 25, 26, 27, 28 - injector; 29 - battery

**Electronic Automatic Transmission Control Unit for Vehicles with F4R, K9K and K4M Engines**: 1 - Battery; 2 - Diagnostic Socket; 3 - Automatic Transmission Selector; 4, 7, 10 - Engine Compartment Interface Unit; 5 - Automatic Transmission Control Unit; 6 - Multi-Function Switch; 8 - Automatic Transmission Selector Position Display; 9 - Brake Light Switch; 11 - Engine Control Unit; 12 - Hydraulic/Electric Interface; 13 - Torque Converter Turbine Speed Sensor; 14 - Relative Pressure Sensor; 15 - Working Fluid Supply Solenoid Valve via Heat Exchanger

The mechanical manuals of the Nissan group show all the data on adjustment and repair of engines belonging to this group. In some cases, the manual provides diagnostic assistance using a troubleshooting chart.

This diagnostic table is compiled based on the symptoms that can be found in a car engine. The Troubleshooting Chart walks an auto mechanic through the inspection process of each stepper motor system, providing the data and specifications that must be followed to resolve a motor's mechanical problem.

Connecting rod bearings

More often, scuffing on liners occurs on contract engines (or installed on cars) imported from Europe. The reason is that the oil change interval there is 30,000 km.

Sometimes it’s worth playing it safe and reducing the interval to 5000 km (this is what the manufacturer recommends doing when operating the car in difficult conditions). For example, for those who often sit in traffic jams, go off-road, or start the engine in the cold. With timely oil changes, you can extend the life of connecting rod bearings to 150,000-200,000 km.

Turbocharger

The use of low-quality oil, as well as infrequent changes and low lubrication levels, lead to damage to the turbocharger bearings. The phenomenon on this engine is infrequent, but still occurs.

Valve drive

This engine does not have hydraulic compensators in the valve drive. Therefore, every 100,000 km the gaps have to be adjusted.

This operation is labor-intensive and expensive. It is necessary to remove the camshaft and, accordingly, the timing belt. In addition, you will have to spend money on pushers (cups) of a certain height. But sometimes you can save money: some services modify parts to the required size by grinding.
