Nissan Rogue S35 All Wiring Diagram
Nissan Rogue S35 2008, 2009, 2010, 2011, 2012, 2013, DTC Circuit Diagnosis, Wiring Diagrams, Pinout of connectors, decoding of fault codes
This electrical repair guide will help you get the most out of your vehicle. Here you will find all the wiring diagrams, fuse box diagram, engine control unit board
Wiring diagram for door locks, interior and exterior lighting, heated seats, mirrors,
It can also help you decide what work needs to be done to keep your car in top running condition.
| 2008 Rogue S35 Body Control System | Download |
| 2008 Rogue S35 Charging System | Download |
| 2008 Rogue S35 Interior Lighting System | Download |
| 2008 Rogue S35 LAN System | Download |
| 2008 Rogue S35 Power Control System | Download |
| 2008 Rogue S35 Power Supply, Ground and Circuit Elements | Download |
| 2008 Rogue S35 Power Window Control System | Download |
| 2008 Rogue S35 Power Outlet | Download |
| 2009 Rogue S35 Body Control System | Download |
| 2009 Rogue S35 Charging System | Download |
| 2009 Rogue S35 Interior Lighting System | Download |
| 2009 Rogue S35 LAN System | Download |
| 2009 Rogue S35 Mirrors Wiring Diagrams | Download |
| 2009 Rogue S35 Power Control System | Download |
| 2009 Rogue S35 Power Supply, Ground and Circuit Elements | Download |
| 2009 Rogue S35 Power Window Control System | Download |
| 2009 Rogue S35 Power Outlet | Download |
| 2010 Rogue S35 Body Control System | Download |
| 2010 Rogue S35 Charging System | Download |
| 2010 Rogue S35 Interior Lighting System | Download |
| 2010 Rogue S35 LAN System | Download |
| 2010 Rogue S35 Mirrors Wiring Diagrams | Download |
| 2010 Rogue S35 Power Control System | Download |
| 2010 Rogue S35 Power Supply, Ground and Circuit Elements | Download |
| 2010 Rogue S35 Power Window Control System | Download |
| 2010 Rogue S35 Power Outlet | Download |
| 2011 Rogue S35 Body Control System | Download |
| 2011 Rogue S35 Charging System | Download |
| 2011 Rogue S35 Interior Lighting System | Download |
| 2011 Rogue S35 LAN System | Download |
| 2011 Rogue S35 Mirrors Wiring Diagrams | Download |
| 2011 Rogue S35 Power Control System | Download |
| 2011 Rogue S35 Power Supply, Ground and Circuit Elements | Download |
| 2011 Rogue S35 Power Window Control System | Download |
| 2011 Rogue S35 Power Outlet | Download |
| 2012 Rogue S35 Body Control System | Download |
| 2012 Rogue S35 Charging System | Download |
| 2012 Rogue S35 Interior Lighting System | Download |
| 2012 Rogue S35 LAN System | Download |
| 2012 Rogue S35 Mirrors Wiring Diagrams | Download |
| 2012 Rogue S35 Power Control System | Download |
| 2012 Rogue S35 Power Window Control System | Download |
| 2012 Rogue S35 Power Outlet | Download |
| 2013 Rogue S35 Body Control System | Download |
| 2013 Rogue S35 Charging System | Download |
| 2013 Rogue S35 Interior Lighting System | Download |
| 2013 Rogue S35 LAN System | Download |
| 2013 Rogue S35 Mirrors Wiring Diagram | Download |
| 2013 Rogue S35 Power Control System | Download |
| 2013 Rogue S35 Power Supply, Ground and Circuit Elements | Download |
| 2013 Rogue S35 Power Window Control System | Download |
| 2013 Rogue S35 Power Outlet | Download |
!ATTENTION! Before starting work, disconnect the battery!

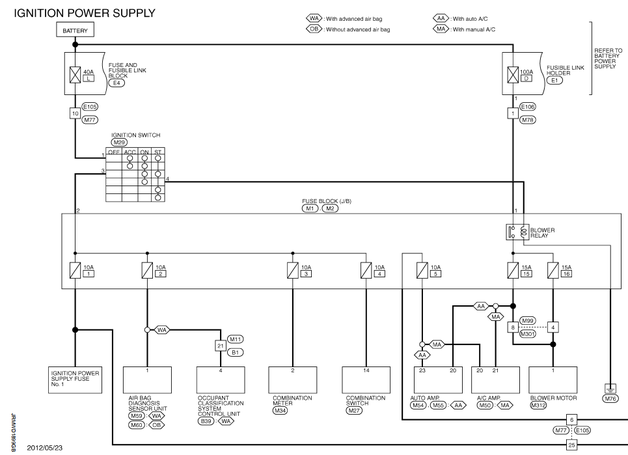

Fuse, Connector and Terminal Arrangement
Wires labeled #1, #2, #3, #4 are connected to the unit connectors

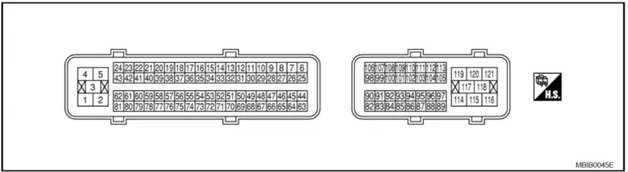

motor control (see Fig.1).
Wire #1 – to pin 84 (red wire)
Wire #2 – to pin 106 (green wire)
Wire #3 – to pin 82 (blue wire)
Wire #4 – to pin 90 (pink wire)
Use color coding only for checking, connection
follow the pinout of the connectors.
Section 2. The wire marked “+12” is connected to pin 46 of the connector

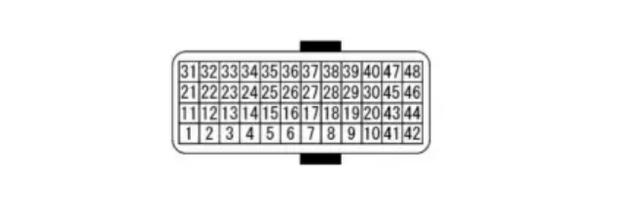

CVT control unit (see Fig. 2)
