Nissan Versa C11 Full Engine Service Manuals

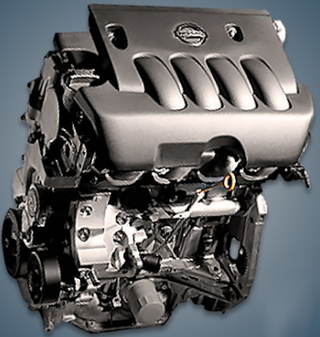

This comprehensive manual provides detailed instructions for the repair and diagnostics of the Nissan Versa C11 2006-2013 HR16DE, MR18DE  engine. Covering all aspects of engine maintenance, troubleshooting, and repair, it includes step-by-step procedures, technical diagrams, and specifications for key components such as the engine block, intake system, ignition, and fuel system. Designed for both professional technicians and DIY enthusiasts, the guide offers practical solutions to common engine problems and helps ensure optimal performance through proper maintenance and accurate diagnostics.

• Home Page>>
• Versa C11 2006-2013 Factory Service Manual>>
• Versa C11 Wiring Diagram, Circuit Elements>>

1. Oil Consumption (HR16DE & MR18DE)

   • Problem: Excessive oil consumption due to piston ring wear or valve seal issues.
   • Symptoms: Frequent need to top off oil, blue smoke from the exhaust.
   • Solution: Regularly monitor oil levels and change oil with the recommended grade. If excessive consumption occurs, check piston rings and valve seals, and repair as necessary.

2. Timing Chain Tensioner Failure (HR16DE & MR18DE)

   • Problem: The timing chain tensioner may fail over time, causing the chain to stretch.
   • Symptoms: Rattling noise from the engine, especially during cold starts, or poor engine performance.
   • Solution: Replace the timing chain and tensioner at the first signs of failure to prevent major engine damage.

3. Carbon Buildup (HR16DE)

   • Problem: Carbon buildup in the intake valves and combustion chamber can lead to poor engine performance.
   • Symptoms: Rough idling, engine misfires, or reduced fuel efficiency.
   • Solution: Perform regular intake cleanings using fuel additives or professional decarbonization treatments to minimize buildup.

4. Throttle Body Issues (HR16DE & MR18DE)

   • Problem: The electronic throttle body may malfunction, causing poor throttle response.
   • Symptoms: Loss of acceleration, rough idling, or stalling.
   • Solution: Clean or replace the throttle body. Reset the throttle position sensor (TPS) if needed.

5. Head Gasket Leaks (MR18DE)

   • Problem: Head gasket failure can lead to coolant and oil mixing or overheating.
   • Symptoms: Overheating engine, white smoke from the exhaust, or coolant loss.
   • Solution: Replace the head gasket at the first signs of leakage. Monitor engine temperature and coolant levels regularly.

6. Ignition Coil Failure (HR16DE & MR18DE)

   • Problem: Ignition coils can fail, leading to misfires and poor engine performance.
   • Symptoms: Engine misfires, rough running, or the check engine light illuminating.
   • Solution: Replace faulty ignition coils and inspect spark plugs for wear. Perform regular ignition system checks.

7. Fuel Pump and Injector Problems (MR18DE)

   • Problem: Fuel pumps and injectors can fail, causing fuel delivery issues.
   • Symptoms: Difficulty starting, loss of power, or poor fuel economy.
   • Solution: Inspect fuel pumps and injectors for faults, and clean or replace them as needed.

8. Crankshaft Position Sensor Failure (HR16DE & MR18DE)

   • Problem: A faulty crankshaft position sensor can lead to stalling or failure to start.
   • Symptoms: Engine stalling, hard starting, or inconsistent RPMs.
   • Solution: Replace the crankshaft position sensor if it shows signs of failure.

9. Overheating (MR18DE)

   • Problem: The engine can overheat due to faulty cooling system components or head gasket leaks.
   • Symptoms: High engine temperature, coolant leaks, or white smoke from the exhaust.
   • Solution: Regularly inspect the cooling system, including the radiator, hoses, and water pump. Replace any faulty components and ensure the cooling system is functioning properly.

10. PCV Valve Failure (HR16DE)

    • Problem: A failing Positive Crankcase Ventilation (PCV) valve can lead to rough idling and oil leaks.
    • Symptoms: Rough idling, oil in the intake manifold, or increased oil consumption.
    • Solution: Regularly check and replace the PCV valve to maintain proper engine ventilation and prevent oil leaks.

Maintenance Tips:

• Regular Oil Changes: Use high-quality oil and replace it every 5,000 to 7,500 miles.
• Timing Chain Inspection: Check the timing chain condition during routine maintenance to avoid failure.
• Ignition System: Inspect spark plugs and ignition coils regularly for optimal performance.
• Coolant System: Flush and replace coolant every 2 years to prevent overheating.
• Fuel System Cleaning: Use fuel system cleaners to maintain fuel injectors and combustion chambers.
