Nissan X-Trail T31 Electrical Wiring Diagram
Electrical wiring diagrams for Nissan X Trail T31 2007, 2008, 2009, 2010, 2011 cars.
Circuit Diagram, Harness Layout and How To Read Harness Layout
- Diagram of the climate control unit.
- Electrical circuits of the engine control system MR30DE, QR25SE, M9R.
- Charging system connection diagram.
- Electrical diagram of the starting system with manual transmission and CVT.
- Headlight block diagram. electric headlight corrector.
- Connection diagram for automatic light switching.
- Reversing light wiring diagram.
- Nissan x trail fog light diagram. Dimensions, license plate lighting.
- Cigarette lighter, sockets.
- Electric window diagram.
- Electric mirror drive.
| Nissan X-Trail T31 Body Control System | Download |
| Nissan X-Trail T31 Charging System | Download |
| Nissan X-Trail T31 Exterior Lighting System | Download |
| Nissan X-Trail T31 Interior Lighting System | Download |
| Nissan X-Trail T31 Lan System | Download |
| Nissan X-Trail T31 Power Supply, Ground & Circuit Elements | Download |
| Nissan X-Trail T31 Power Window Control System | Download |
| Nissan X-Trail T31 Power Outlet | Download |
| Nissan X-Trail T31 Security Control System | Download |
Carefully!
Do not “repair” fuses or replace them with more powerful ones - there is a risk of fire! In addition, this can lead to serious damage to other electrical components.
The purpose of the fuses and the fuse box may vary depending on the vehicle equipment and year of manufacture.
Wiring Diagram— SUNROOF CONTROL SYSTEM X-Trail T31
4WD control unit Nissan X-Trail T31
Problems with the 2wd/auto/lock mode switching buttons
The 4WD control unit is located under the PASSENGER glove compartment, next to the engine control unit. In the restyled version of Xtrail it is under the DRIVER's glove compartment.

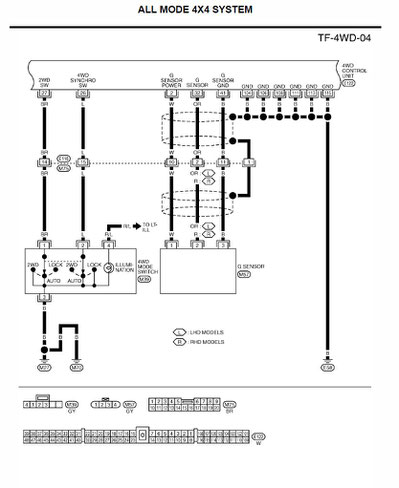

Added a diagram for connecting control buttons to the 4WD control unit. It is advisable to check the integrity of the wiring - there are only two wires to the block, and grounding. To be sure, you can remove the buttons, disassemble, check and clean them.
Car alarm connection points for Nissan X-trail 2010
Ignition switch harness:
+12 – blue
Ignition 1 – pink
Ignition 2 – yellow
Starter - red
Fuel pump - red in the left threshold
Handbrake – gray, on the instrument panel
BCM behind passenger's glove compartment:
driver's door - pink
passenger door – brown
rear left door – red
rear right door – blue
trunk - yellow
all limit switches are negative
turns – gray and brown
central locking (-) – blue (close) and brown (open)
